Products
No product you are looking for? Please contact us, we will solve this problem asap.
Specifications:
Density: from 25 kg/cbms to 300 kg/cbms
Hardness: from 13 shore C to 70 shore C
Width: 5 mm to 2000 mm
Thickness: 1 mm to 10 mm (single layer), 10 mm to 100 mm (multi layer)
Length: 300 mm to 2000 mm
Color: black, white, grey, green
Back tapping: available
Cutting Size or sharp: available

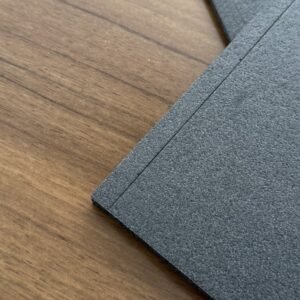

Rigid/Stiff Expansion Joint Foam
Exceptional Features
Superior Insulation: With a thermal conductivity often less than 0.040 W/m·K, our XPE Foam is an outstanding heat - insulating material. It efficiently blocks heat transfer, whether it's retaining warmth in winter or preventing heat ingress in summer. This makes it an ideal choice for energy - efficient construction projects, such as insulating walls, roofs, and floors.
Remarkable Durability: Thanks to its cross - linked molecular structure, our XPE Foam exhibits excellent strength and tear resistance. It can endure harsh environmental factors like sunlight, moisture, and temperature fluctuations without significant degradation. This long - lasting durability ensures a reduced need for replacements, saving both time and costs in the long run.
Water and Moisture Resistant: The closed - cell structure of our XPE Foam results in an extremely low water absorption rate. It can effectively resist water and moisture intrusion, making it suitable for applications in high - humidity areas or where water exposure is a concern. This property helps maintain the integrity and performance of the materials it contacts, such as in basements, bathrooms, and outdoor structures.
Application:

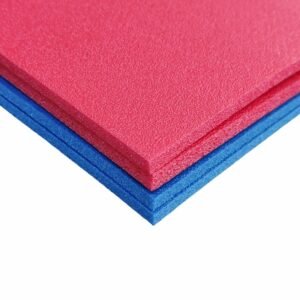

Construction Industry: In construction, our Expansion Joint XPE Foam is widely used as an expansion joint
filler between concrete slabs, walls, and other building components. It allows for movement caused by
temperature changes, settlement, or other factors, preventing cracks and damage to the structure.
It also serves as insulation in roofs, walls, and floors, enhancing the energy efficiency of buildings.
Additionally, it can be used as a cushioning material for pipe and duct installations.
Customization Services
You can choose from various densities, thicknesses, colors, and sizes to meet the specific needs of your project.
Our experienced team is also available to work with you to develop tailor - made solutions that fit your unique
Specifications:
Specifications:
Density: from 25 kg/cbms to 300 kg/cbms
Hardness: from 13 shore C to 70 shore C
Width: 5 mm to 2000 mm
Thickness: 1 mm to 10 mm (single layer), 10 mm to 100 mm (multi layer)
Length: 300 mm to 2000 mm
Color: black, white, grey, green
Back tapping: available
Cutting Size or sharp: available
Product Details
Specification/Technical Data
| Foaming Ratio/Magnication(Times) | 5 | 8 | 10 | 15 | 20 | 25 | 30 | 35 | Test standard | |
| Density(kg/m³) | 200±-30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | 28.6±2 | GB/T6343 | |
| Shore Hardness(°) | Thickness>3mm | 60~70 | 50~60 | 45~50 | 35~45 | 30~35 | 25~30 | 18~25 | 13~18 | GB/T2411 |
| Thickness≤3mm | 55~65 | 45~55 | 35~45 | 25~35 | 20~25 | 20~25 | 15~20 | 15~20 | ||
| Water absorption (%)23ºC+/-2ºC,24h | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.5 | ≤0.5 | GB/8810 | |
| Thermal conductivity(w/m.k) | ≤0.095 | ≤0.084 | ≤0.073 | ≤0.065 | ≤0.055 | ≤0.049 | ≤0.045 | ≤0.040 | GB/T10297 | |
| Tensile strenth(Mpa) | Transverse | ≥1.3 | ≥0.9 | ≥0.7 | ≥0.5 | ≥0.4 | ≥0.3 | ≥0.2 | ≥0.15 | GB/T6344 |
| Longitudinal | ≥1.5 | ≥1.0 | ≥0.8 | ≥0.6 | ≥0.5 | ≥0.4 | ≥0.25 | ≥0.2 | ||
| Elongation(%) | Transverse | ≥200 | ≥160 | ≥150 | ≥130 | ≥130 | ≥110 | ≥110 | ≥100 | GB/T6344 |
| Longitudinal | ≥220 | ≥170 | ≥160 | ≥150 | ≥150 | ≥120 | ≥120 | ≥110 | ||
| Tearing strength(KN/m) | Transverse | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.5 | ≥1.3 | GB/T10808 |
| Longitudinal | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.2 | ≥1.2 | ||
| compression distortions(%)23ºC+/-2ºC,22 | ≤2 | ≤3 | ≤5 | ≤6 | ≤8 | ≤8 | ≤9 | ≤10 | GB/T6669 | |
| Size change rate(70+/-2ºC,22h) | Transverse | ≤-4 | ≤-4 | ≤-4 | ≤-4 | ≤-6 | ≤-6 | ≤-6 | ≤-6 | |
| Longitudinal | ≤-6 | ≤-6 | ≤-6 | ≤-6 | ≤-8 | ≤-8 | ≤-8 | ≤-8 | GB/T8811 | |
Specifications:
Density: from 25 kg/cbms to 300 kg/cbms
Hardness: from 13 shore C to 70 shore C
Width: 5 mm to 2000 mm
Thickness: 1 mm to 10 mm (single layer), 10 mm to 100 mm (multi layer)
Length: 300 mm to 2000 mm
Color: black, white, grey, green
Back tapping: available
Cutting Size or sharp: available
Fire Retardant: optional
Adhesive backing: optional
Specifications:
Density: from 25 kg/cbms to 300 kg/cbms
Hardness: from 13 shore C to 70 shore C
Width: 5 mm to 2000 mm
Thickness: 1 mm to 10 mm (single layer), 10 mm to 100 mm (multi layer)
Length: 300 mm to 2000 mm
Color: black, white, grey, green
Back tapping: available
Cutting Size or sharp: available
Specifications:
Density: from 25 kg/cbms to 300 kg/cbms
Hardness: from 13 shore C to 70 shore C
Width: 5 mm to 2000 mm
Thickness: 1 mm to 10 mm (single layer), 10 mm to 100 mm (multi layer)
Length: 300 mm to 2000 mm
Color: black, white, grey, green
Back tapping: available
Cutting Size or sharp: available
Specifications:
Specifications:
Density: from 25 kg/cbms to 300 kg/cbms
Hardness: from 13 shore C to 70 shore C
Width: 5 mm to 2000 mm
Thickness: 1 mm to 10 mm (single layer), 10 mm to 100 mm (multi layer)
Length: 300 mm to 2000 mm
Color: black, white, grey, green
Back tapping: available
Cutting Size or sharp: available
Specifications:

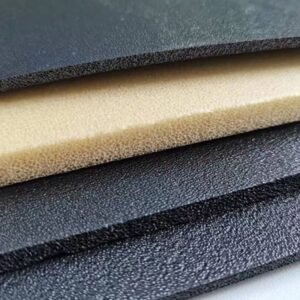

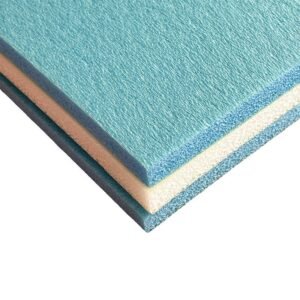

XPE foam sheet has good properties, such as waterproof, insulation, shock absorption, buffering, rebound, heat insulation, heat preservation, weather resistance, anti-aging, corrosion resistance, light weight, good thermal insulator and moldability.
The applications of XPE foam include:
Automotive
Electronics
Footwear and sports
Packaging
Healthcare
Construction
Petroleum industry
Specifications:
Density: 110 kg/cbms
Hardness: from 50 shore C to 60 shore C
Width: 5 mm to 2000 mm
Thickness: 1 mm to 10 mm (single layer), 10 mm to 100 mm (multi layer)
Length: 300 mm to 2000 mm
Color: black, white, grey
Back tapping: available
Cutting Size or sharp: available
Fire Retardant: optional
Adhesive backing: optional
Specifications:
Density: from 37 kg/cbms to 43 kg/cbms
Hardness: from 20 shore C to 25 shore C
Block Size: 100 mm x 1 m x 2 m
Thickness:1 mm to 60 mm
Color: black, white, grey, green , red, blue.
Tensile strength: 230 Kpa ~ 350 Kpa
Elonagation:170%~220%
Water absorption: 6%
Temp Range: -40 ~ 90 Celsius
Product Details
EVA foam
EVA foam has numerous uses, including sports shoes and pads, gym mats, pool floats, equipment padding, saddles, foam rollers, model building, cosplay outfits, and kneeling pads. Inside helmets, cars, appliances, snow, and ski boots, as well as slippers and sandals, fishing rods, and other handles.
EVA foam offers a competitive alternative to cork, and particularly rubber for numerous applications for its properties, which include:
- Impact and vibration absorptions
- Thermal insulation properties
- Acoustical properties
- Chemical, fuel, and oil spill containment
- Water and splash
- Buoyancy properties
- High resilience
Due to these qualities, EVA foam is used in numerous industries:
- Automotive
- Electronics
- Healthcare
- Footwear and clothing
- Sports Facilities
- Toys and games
- Marine and water floatation
- Resin additives and glues
- Commercial and industrial packaging
- Bookbinding and paper industries
- Craft and costume sector
Specifications:
Density: from 45 kg/cbms to 53 kg/cbms
Hardness: from 22 shore C to 26 shore C
Block Size: 100 mm x 1 m x 2 m / 100 mm x 1.2 m x 2.4 m
Thickness:1 mm to 60 mm
Color: black, white, grey, green , red, blue.
Tensile strength: 280 Kpa ~ 450 Kpa
Elonagation:170%~220%
Water absorption: 6%
Temp Range: -40 ~ 90 Celsius
Product Details
EVA foam
EVA foam has numerous uses, including sports shoes and pads, gym mats, pool floats, equipment padding, saddles, foam rollers, model building, cosplay outfits, and kneeling pads. Inside helmets, cars, appliances, snow, and ski boots, as well as slippers and sandals, fishing rods, and other handles.
EVA foam offers a competitive alternative to cork, and particularly rubber for numerous applications for its properties, which include:
- Impact and vibration absorptions
- Thermal insulation properties
- Acoustical properties
- Chemical, fuel, and oil spill containment
- Water and splash
- Buoyancy properties
- High resilience
Due to these qualities, EVA foam is used in numerous industries:
- Sports equipment, such as ski boots, hockey, boxing, mixed martial arts, and more
- Floats for commercial fishing gear
- Shock absorber in sports shoes,
- Toys and games
- Orthotics
- Toys and games
- Traction Pads for surfboards & skimboards
- Arts & Crafts
- Sports Mats
- Stable Mats and other equestrian products
- Life Jackets
- Craft and costume sector
- Many other potential applications
Specifications:
Density: from 37 kg/cbms to 43 kg/cbms
Hardness: from 20 shore C to 25 shore C
Block Size: 100 mm x 1 m x 2 m
Thickness:1 mm to 60 mm
Color: black, white, grey, green , red, blue.
Tensile strength: 230 Kpa ~ 350 Kpa
Elonagation:170%~220%
Water absorption: 6%
Temp Range: -40 ~ 90 Celsius
Product Details
EVA foam
EVA foam has numerous uses, including sports shoes and pads, gym mats, pool floats, equipment padding, saddles, foam rollers, model building, cosplay outfits, and kneeling pads. Inside helmets, cars, appliances, snow, and ski boots, as well as slippers and sandals, fishing rods, and other handles.
EVA foam offers a competitive alternative to cork, and particularly rubber for numerous applications for its properties, which include:
- Impact and vibration absorptions
- Thermal insulation properties
- Acoustical properties
- Chemical, fuel, and oil spill containment
- Water and splash
- Buoyancy properties
- High resilience
Due to these qualities, EVA foam is used in numerous industries:
- Automotive
- Electronics
- Healthcare
- Footwear and clothing
- Sports Facilities
- Toys and games
- Marine and water floatation
- Resin additives and glues
- Commercial and industrial packaging
- Bookbinding and paper industries
- Craft and costume sector
Specifications:
Density: from 45 kg/cbms to 53 kg/cbms
Hardness: from 22 shore C to 26 shore C
Block Size: 100 mm x 1 m x 2 m / 100 mm x 1.2 m x 2.4 m
Thickness:1 mm to 60 mm
Color: black, white, grey, green , red, blue.
Tensile strength: 280 Kpa ~ 450 Kpa
Elonagation:170%~220%
Water absorption: 6%
Temp RaEVA foam
EVA foam has numerous uses, including sports shoes and pads, gym mats, pool floats, equipment padding, saddles, foam rollers, model building, cosplay outfits, and kneeling pads. Inside helmets, cars, appliances, snow, and ski boots, as well as slippers and sandals, fishing rods, and other handles.
EVA foam offers a competitive alternative to cork, and particularly rubber for numerous applications for its properties, which include:
- Impact and vibration absorptions
- Thermal insulation properties
- Acoustical properties
- Chemical, fuel, and oil spill containment
- Water and splash
- Buoyancy properties
- High resilience
Due to these qualities, EVA foam is used in numerous industries:
Many other potential applicationsnge: -40 ~ 90 Celsius
Sports equipment, such as ski boots, hockey, boxing, mixed martial arts, and more
Floats for commercial fishing gear
Shock absorber in sports shoes,
Toys and games
Orthotics
Toys and games
Traction Pads for surfboards & skimboards
Arts & Crafts
Sports Mats
Stable Mats and other equestrian products
Life Jackets
Craft and costume sector
Specifications:
Density: from 28 kg/cbms to 34 kg/cbms
Hardness: from 17 shore C to 22 shore C
Block Size: 100 mm x 1 m x 2 m / 100 mm x 1.2 m x 2.4 m
Thickness:1 mm to 60 mm
Color: black, white, grey, green, red, blue.
Tensile strength: 150 Kpa ~ 260 Kpa
Elonagation:80%~120%
Water absorption: 10%
Product Details
EVA foam
EVA foam has numerous uses, including sports shoes and pads, gym mats, pool floats, equipment padding, saddles, foam rollers, model building, cosplay outfits, and kneeling pads. Inside helmets, cars, appliances, snow, and ski boots, as well as slippers and sandals, fishing rods, and other handles.
EVA foam offers a competitive alternative to cork, and particularly rubber for numerous applications for its properties, which include:
- Impact and vibration absorptions
- Thermal insulation properties
- Acoustical properties
- Chemical, fuel, and oil spill containment
- Water and splash
- Buoyancy properties
- High resilience
Due to these qualities, EVA foam is used in numerous industries:
- Sports equipment, such as ski boots, hockey, boxing, mixed martial arts, and more
- Floats for commercial fishing gear
- Shock absorber in sports shoes,
- Toys and games
- Orthotics
- Toys and games
- Traction Pads for surfboards & skimboards
- Arts & Crafts
- Sports Mats
- Stable Mats and other equestrian products
- Life Jackets
- Craft and costume sector
- Many other potential applications
Specifications:
EVA Foam Sheet is the closed cell foam sheet. Frequently used for floor and exercise mats, sports equipment, crafts, footstools, life jackets, slippers and more importantly for cosplay props and costumes. EVA foam can be thermoformed and applied to and painted over other EVA pieces or materials. EVA Foam Sheet is available in a variety of thicknesses, shapes and densities. Durable, easy to thermoform, easy to sandpaper, and high density allow for accurate and easy engraving of parts into foam. At the same time, we provide two-color composite foam boards, such as EVA+EVA or EVA+PE, to meet the processing needs of foam insert or case insert. Special requirements can also be customized, such as adding a carbonized layer to the surface.
Product Details
Product Parameters
| Item | Density | Hardness | Tensile Strength | Elongation at Break | 25%Compression Stress | Water Absorption(≤) | 25% Compression Set | Flammability Rating |
| KG/m3 | Shore C | Kpa | % | Kpa | % | (70 C x 22hours )% | >=3mm | |
| S30 | 26-32 | 15-20 | 200-260 | 180-220 | 32-40 | 6 | 3-6 | / |
| S40 | 37-43 | 20-25 | 230-350 | 170-220 | 50-60 | 6 | 4-6 | / |
| S50 | 45-53 | 22-26 | 280-450 | 170-220 | 51-57 | 6 | 0.5-1.5 | / |
| S65 | 58-67 | 30-38 | 280-450 | 170-220 | 70-82 | 4 | 3.1-4.8 | / |
Product Description
Value Add Services
Cut to the thickness as customers'needs
Add double side adhesive tape
Cut into the width required by the customer
Die cut or CNC cutting to the part according to the drawing
Specifications:
Density: from 25 kg/cbms to 300 kg/cbms
Hardness: from 13 shore C to 70 shore C
Width: 5 mm to 2000 mm
Thickness: 1 mm to 10 mm (single layer), 10 mm to 100 mm (multi layer)
Length: 300 mm to 2000 mm
Color: black, white, grey, green
Back tapping: available
Cutting Size or sharp: available
Rigid/Stiff Expansion Joint Foam
Exceptional Features
Superior Insulation: With a thermal conductivity often less than 0.040 W/m·K, our XPE Foam is an outstanding heat - insulating material. It efficiently blocks heat transfer, whether it's retaining warmth in winter or preventing heat ingress in summer. This makes it an ideal choice for energy - efficient construction projects, such as insulating walls, roofs, and floors.
Remarkable Durability: Thanks to its cross - linked molecular structure, our XPE Foam exhibits excellent strength and tear resistance. It can endure harsh environmental factors like sunlight, moisture, and temperature fluctuations without significant degradation. This long - lasting durability ensures a reduced need for replacements, saving both time and costs in the long run.
Water and Moisture Resistant: The closed - cell structure of our XPE Foam results in an extremely low water absorption rate. It can effectively resist water and moisture intrusion, making it suitable for applications in high - humidity areas or where water exposure is a concern. This property helps maintain the integrity and performance of the materials it contacts, such as in basements, bathrooms, and outdoor structures.
Application:
Construction Industry: In construction, our Expansion Joint XPE Foam is widely used as an expansion joint
filler between concrete slabs, walls, and other building components. It allows for movement caused by
temperature changes, settlement, or other factors, preventing cracks and damage to the structure.
It also serves as insulation in roofs, walls, and floors, enhancing the energy efficiency of buildings.
Additionally, it can be used as a cushioning material for pipe and duct installations.
Customization Services
You can choose from various densities, thicknesses, colors, and sizes to meet the specific needs of your project.
Our experienced team is also available to work with you to develop tailor - made solutions that fit your unique
Specifications:
Specifications:
Density: from 25 kg/cbms to 300 kg/cbms
Hardness: from 13 shore C to 70 shore C
Width: 5 mm to 2000 mm
Thickness: 1 mm to 10 mm (single layer), 10 mm to 100 mm (multi layer)
Length: 300 mm to 2000 mm
Color: black, white, grey, green
Back tapping: available
Cutting Size or sharp: available
Product Details
Specification/Technical Data
| Foaming Ratio/Magnication(Times) | 5 | 8 | 10 | 15 | 20 | 25 | 30 | 35 | Test standard | |
| Density(kg/m³) | 200±-30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | 28.6±2 | GB/T6343 | |
| Shore Hardness(°) | Thickness>3mm | 60~70 | 50~60 | 45~50 | 35~45 | 30~35 | 25~30 | 18~25 | 13~18 | GB/T2411 |
| Thickness≤3mm | 55~65 | 45~55 | 35~45 | 25~35 | 20~25 | 20~25 | 15~20 | 15~20 | ||
| Water absorption (%)23ºC+/-2ºC,24h | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.5 | ≤0.5 | GB/8810 | |
| Thermal conductivity(w/m.k) | ≤0.095 | ≤0.084 | ≤0.073 | ≤0.065 | ≤0.055 | ≤0.049 | ≤0.045 | ≤0.040 | GB/T10297 | |
| Tensile strenth(Mpa) | Transverse | ≥1.3 | ≥0.9 | ≥0.7 | ≥0.5 | ≥0.4 | ≥0.3 | ≥0.2 | ≥0.15 | GB/T6344 |
| Longitudinal | ≥1.5 | ≥1.0 | ≥0.8 | ≥0.6 | ≥0.5 | ≥0.4 | ≥0.25 | ≥0.2 | ||
| Elongation(%) | Transverse | ≥200 | ≥160 | ≥150 | ≥130 | ≥130 | ≥110 | ≥110 | ≥100 | GB/T6344 |
| Longitudinal | ≥220 | ≥170 | ≥160 | ≥150 | ≥150 | ≥120 | ≥120 | ≥110 | ||
| Tearing strength(KN/m) | Transverse | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.5 | ≥1.3 | GB/T10808 |
| Longitudinal | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.2 | ≥1.2 | ||
| compression distortions(%)23ºC+/-2ºC,22 | ≤2 | ≤3 | ≤5 | ≤6 | ≤8 | ≤8 | ≤9 | ≤10 | GB/T6669 | |
| Size change rate(70+/-2ºC,22h) | Transverse | ≤-4 | ≤-4 | ≤-4 | ≤-4 | ≤-6 | ≤-6 | ≤-6 | ≤-6 | |
| Longitudinal | ≤-6 | ≤-6 | ≤-6 | ≤-6 | ≤-8 | ≤-8 | ≤-8 | ≤-8 | GB/T8811 | |
Specifications:
Density: from 25 kg/cbms to 300 kg/cbms
Hardness: from 13 shore C to 70 shore C
Width: 5 mm to 2000 mm
Thickness: 1 mm to 10 mm (single layer), 10 mm to 100 mm (multi layer)
Length: 300 mm to 2000 mm
Color: black, white, grey, green
Back tapping: available
Cutting Size or sharp: available
Fire Retardant: optional
Adhesive backing: optional
Specifications:
Density: from 25 kg/cbms to 300 kg/cbms
Hardness: from 13 shore C to 70 shore C
Width: 5 mm to 2000 mm
Thickness: 1 mm to 10 mm (single layer), 10 mm to 100 mm (multi layer)
Length: 300 mm to 2000 mm
Color: black, white, grey, green
Back tapping: available
Cutting Size or sharp: available
Specifications:
Density: from 25 kg/cbms to 300 kg/cbms
Hardness: from 13 shore C to 70 shore C
Width: 5 mm to 2000 mm
Thickness: 1 mm to 10 mm (single layer), 10 mm to 100 mm (multi layer)
Length: 300 mm to 2000 mm
Color: black, white, grey, green
Back tapping: available
Cutting Size or sharp: available
Specifications:
Specifications:
Density: from 25 kg/cbms to 300 kg/cbms
Hardness: from 13 shore C to 70 shore C
Width: 5 mm to 2000 mm
Thickness: 1 mm to 10 mm (single layer), 10 mm to 100 mm (multi layer)
Length: 300 mm to 2000 mm
Color: black, white, grey, green
Back tapping: available
Cutting Size or sharp: available
Specifications:
XPE foam sheet has good properties, such as waterproof, insulation, shock absorption, buffering, rebound, heat insulation, heat preservation, weather resistance, anti-aging, corrosion resistance, light weight, good thermal insulator and moldability.
The applications of XPE foam include:
Automotive
Electronics
Footwear and sports
Packaging
Healthcare
Construction
Petroleum industry
Specifications:
Density: 110 kg/cbms
Hardness: from 50 shore C to 60 shore C
Width: 5 mm to 2000 mm
Thickness: 1 mm to 10 mm (single layer), 10 mm to 100 mm (multi layer)
Length: 300 mm to 2000 mm
Color: black, white, grey
Back tapping: available
Cutting Size or sharp: available
Fire Retardant: optional
Adhesive backing: optional
